FC721-ZZ

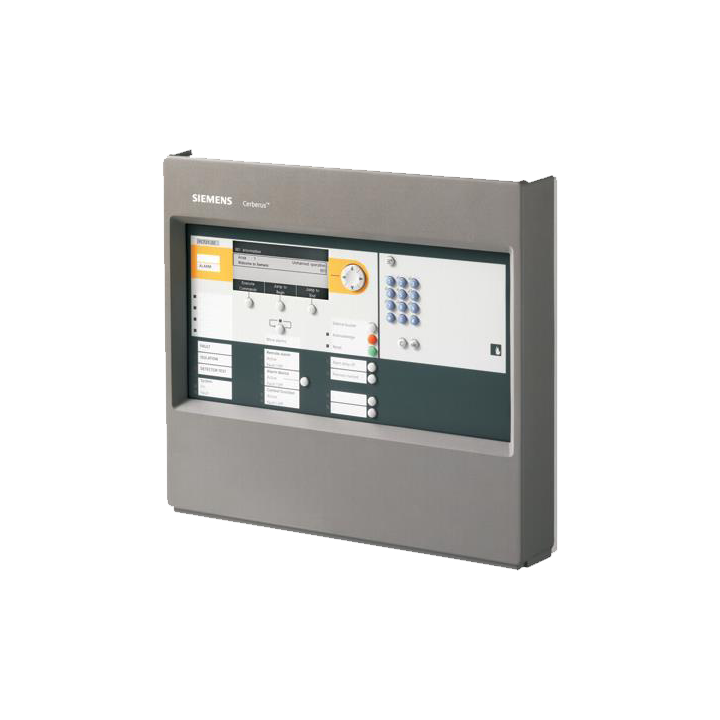

Fire control panel (1-loop) in housing (Eco)
The FC721-ZZ is a compact fire control panel with integrated operating unit that can process signals from Cerberus™ PRO devices of up to 126 addresses.
The fire control panel may be used as a stand-alone unit only.
In addition, an Ethernet connection is available at each station. Via this fast Ethernet interface remote control service is possible. All detector lines are monitored for ground faults.
The Cerberus-Engineering-Tool permits the system to be adapted to specific customers’ requirements. Up to 2000 events can be stored according to various criteria. Automatic summer/winter change. Detection and automatic read-in (auto-configuration) of all C-NET devices, providing immediate simple operation. Stored data can be uploaded via Cerberus-Remote access.
The FC721-ZZ is ideally suited for smaller applications, e.g. in workshops, hotels, etc.
The expansion and accessories must be ordered separately.
The fire control panel may be used as a stand-alone unit only.
In addition, an Ethernet connection is available at each station. Via this fast Ethernet interface remote control service is possible. All detector lines are monitored for ground faults.
The Cerberus-Engineering-Tool permits the system to be adapted to specific customers’ requirements. Up to 2000 events can be stored according to various criteria. Automatic summer/winter change. Detection and automatic read-in (auto-configuration) of all C-NET devices, providing immediate simple operation. Stored data can be uploaded via Cerberus-Remote access.
The FC721-ZZ is ideally suited for smaller applications, e.g. in workshops, hotels, etc.
The expansion and accessories must be ordered separately.
- Detector compatibility : Cerberus PRO FD720
- Number of addresses : 126
- Number of detector lines : 1 loop or 2 stub lines
- Programmable input/output : 4
- Power consumption : Alarm power : 4.68 W, Quiet power : 2.808 W
- Relay outputs : 1x RT alarm 1x RT fault
- Supervised output : 1x RT alarm , 1x RT fault , 1x Horn
- Mains voltage : AC 97...127 V / AC 196...253 V
- Operating voltage : DC 21…28.6 V
- Operating current : 2500 mA
- Power supply : 70 W
- Bypass time for emergency power supply : 72 h
- Battery capacity : 2 x 12 V, 7 Ah
- Plug-in position : 1 -> for serial interface RS232 or RS485
- Operating temperature : -8…42 °C
- Storage temperature : -20…+60 °C
- Relative humidity : ≤95 % rel. (no condensation)
- Protection category : IP30
- Color housing/cover : Light grey, ~RAL 7035 / Gray, ~RAL 050 00 00
- Cabinet dimensions : (W x H x D) 430 x 398 x 80 mm, Weight (net) : 8.8 kg
