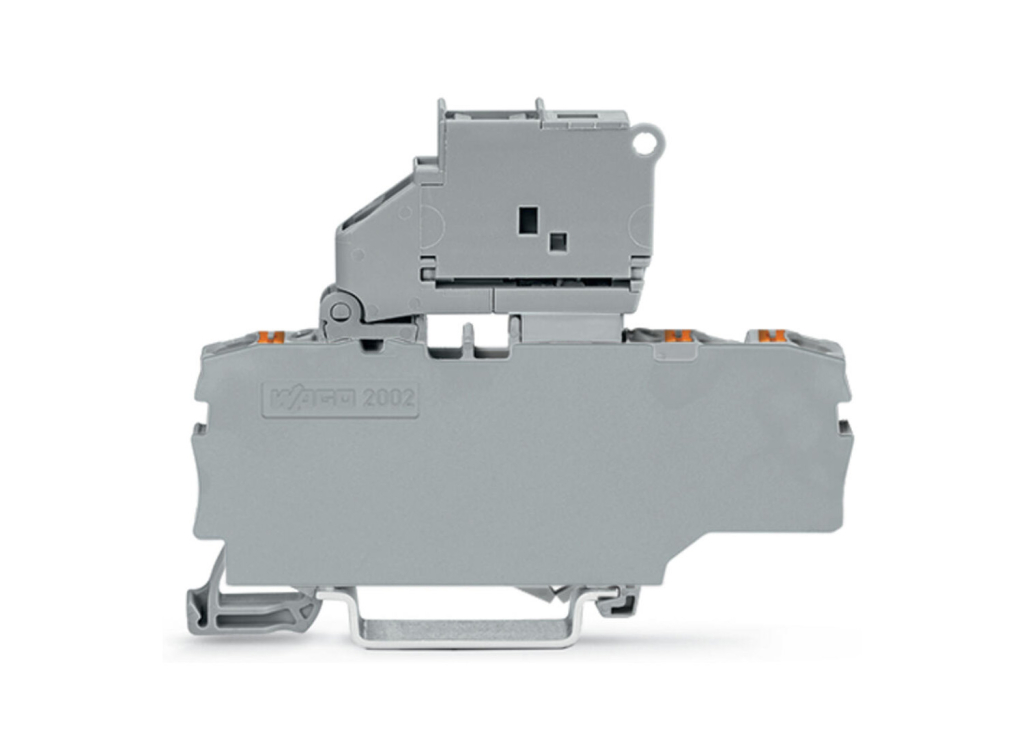

Wago 2202-1711/1000-836
Wago 2202-1711/1000-836
Fuse Terminal Block, 2202 Series, Gray
Terminal Block with Fuse 2.5 mm. Easily, quickly and safely connect conductors with this fuse terminal block (item number 2202-1711). Strip lengths must be between 10 and 12 mm when connecting conductors to this fuse terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Depending on the type of conductor, this fuse terminal block is ideal for conductor cross sections ranging from 0.25 mm² to 4 mm².
Spesifikasi :
3-conductor fuse terminal block; with pivoting fuse holder; and end plate; for 5 x 20 mm miniature metric fuse; with push-button; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
This product is designed for specific Ex applications (please refer to the product datasheet).
Unduhan populer
- 3-conductor fuse terminal block
- with pivoting fuse holder
- and end plate
- for 5 x 20 mm miniature metric fuse
- with push-button
- without blown fuse indication
- for DIN-rail 35 x 15 and 35 x 7.5
- 2.5 mm²;
- Push-in CAGE CLAMP®
- Color : Gray
