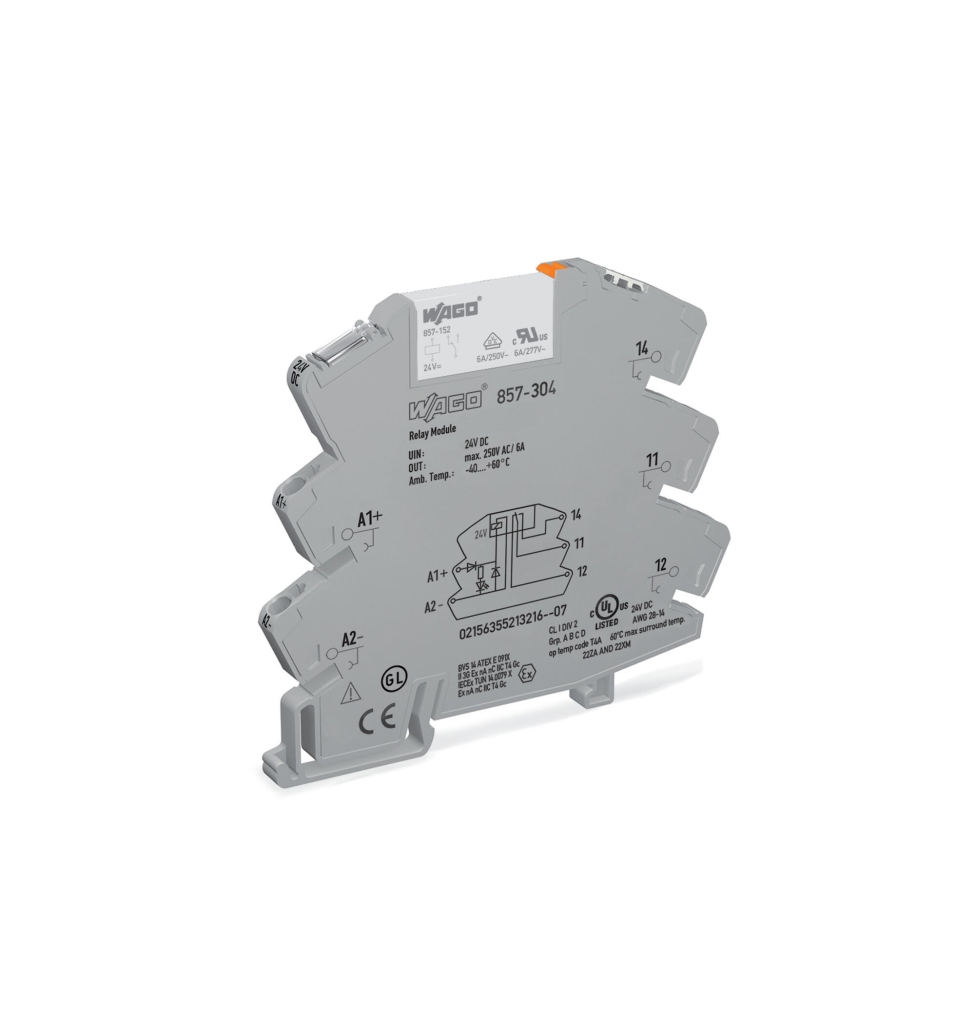

Wago 857-304
Relay + Socket Terminal Block
Wago 857-304 adalah Relay + Socket Terminal Block
Adjacent devices of the same type are devices of the same design (series) that are arranged next to one another on the DIN-rail with the same orientation. An end stop (249-116) must be fitted to devices of other types for compliance with the reinforced insulation requirements.
To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
Spesifikasi Utama
- Jenis : Relay module.
- Nominal input voltage : 24 VDC.

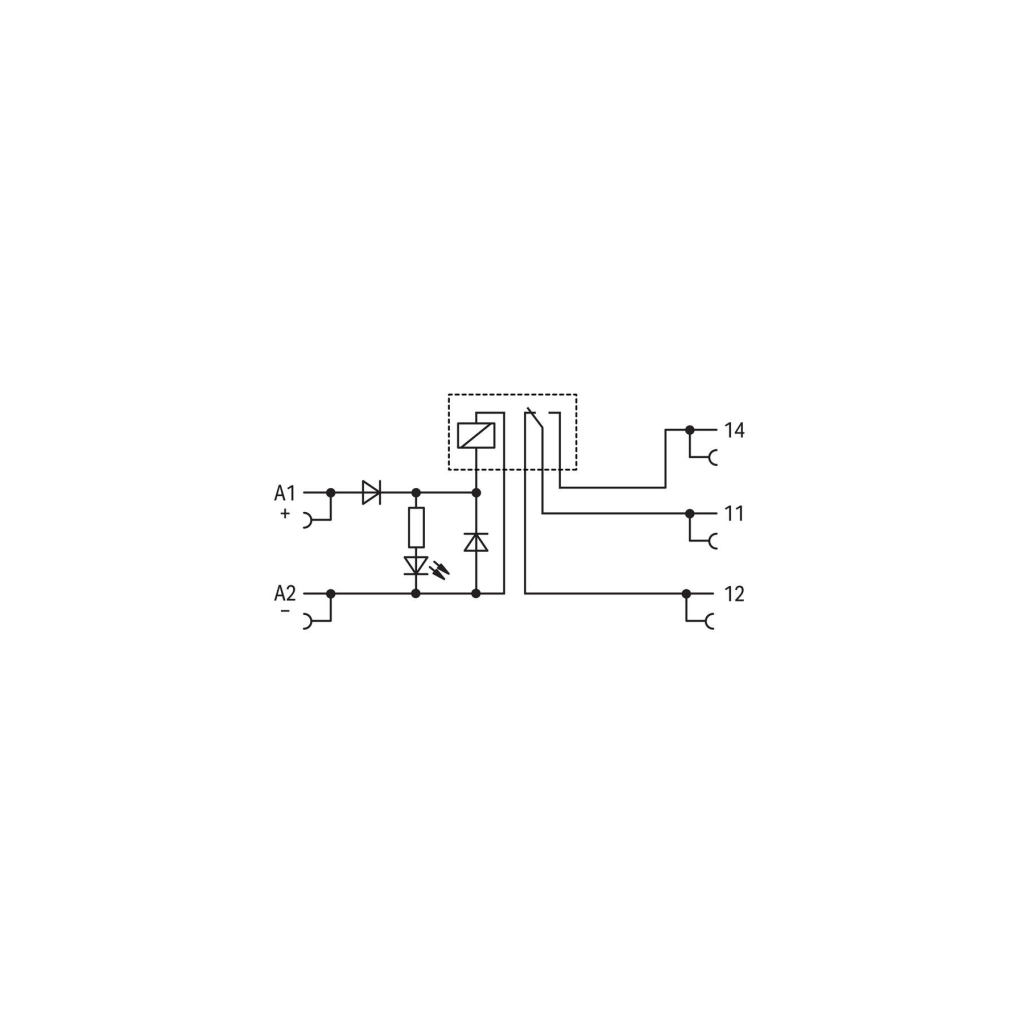

- 1 changeover contact.

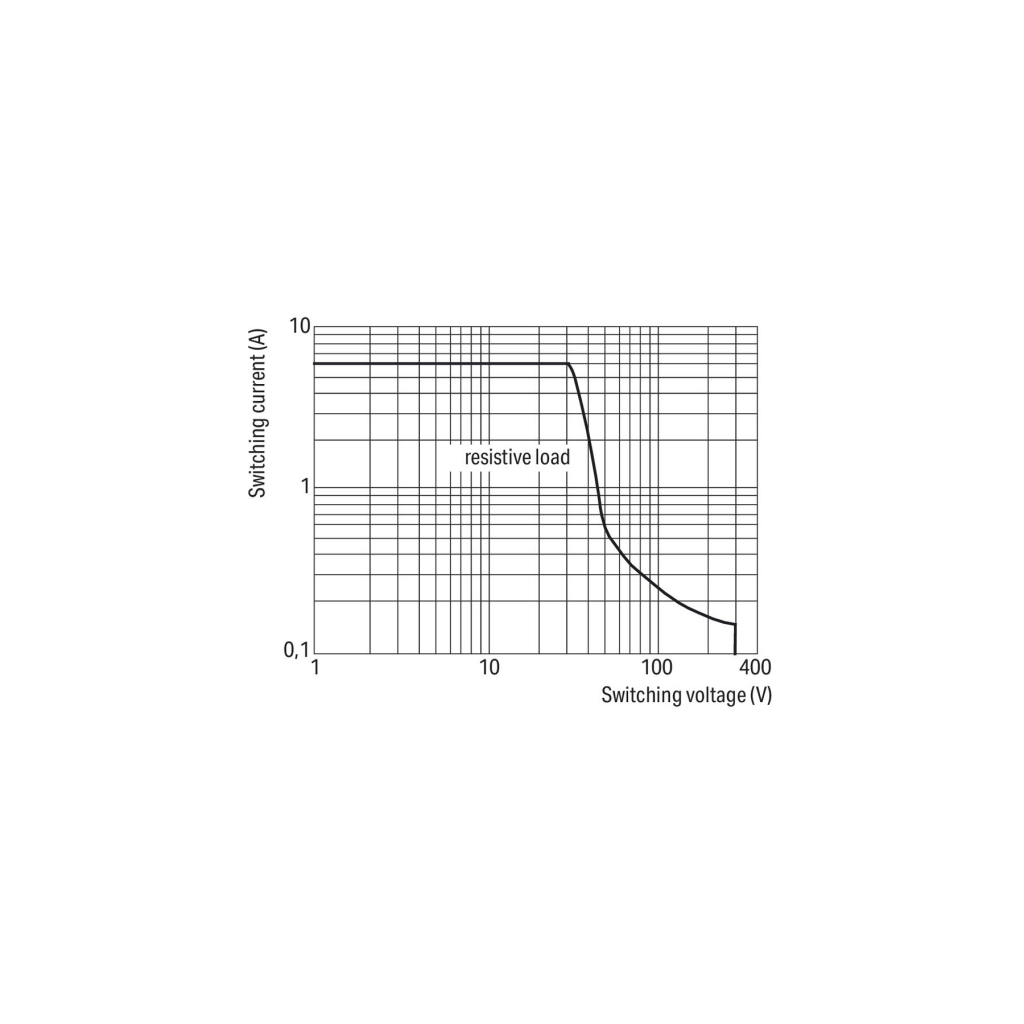

- Limiting continuous current : 6 A.
- Yellow status indicator.

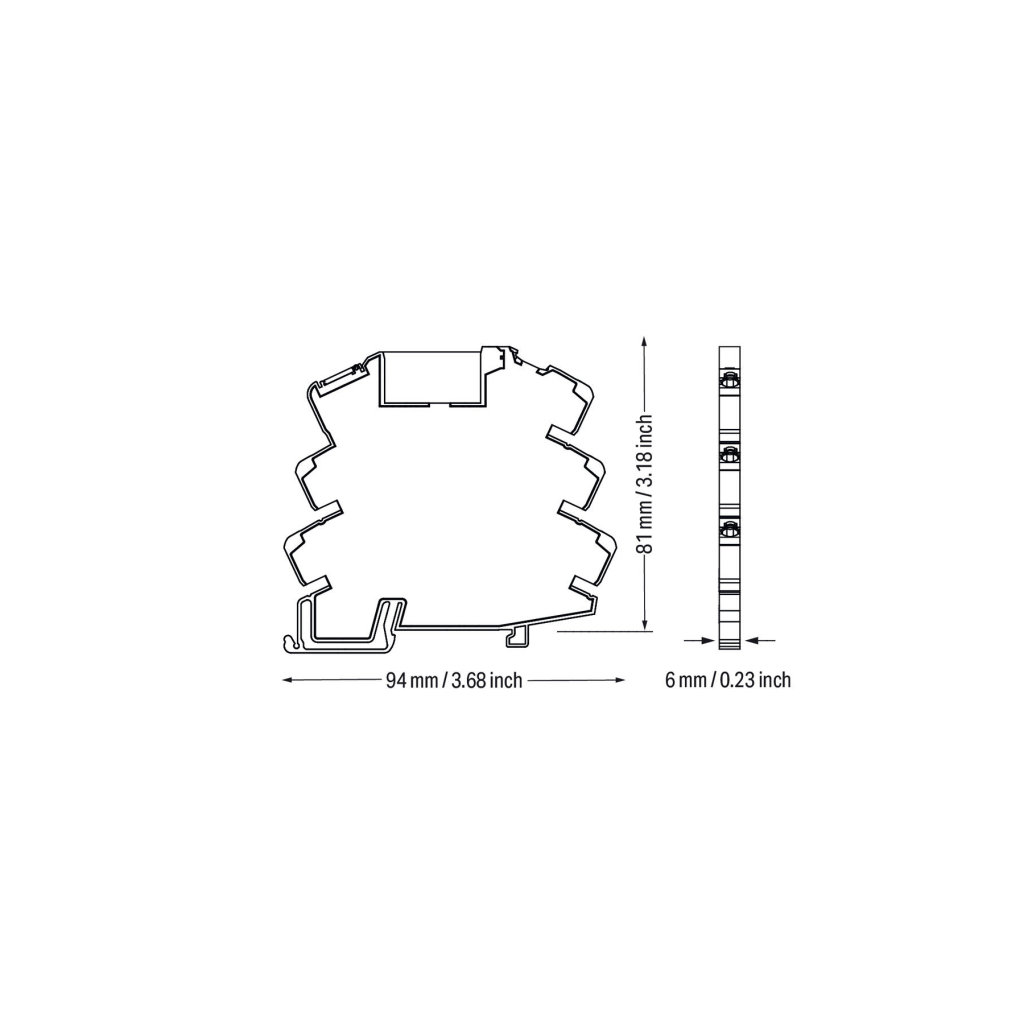

- Module width : 6 mm
- Warna : Abu-abu (Gray).
Spec Tech :
Relay module; Nominal input voltage : 24 VDC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm; gray
