Wago 2201-1301
Terminal Block

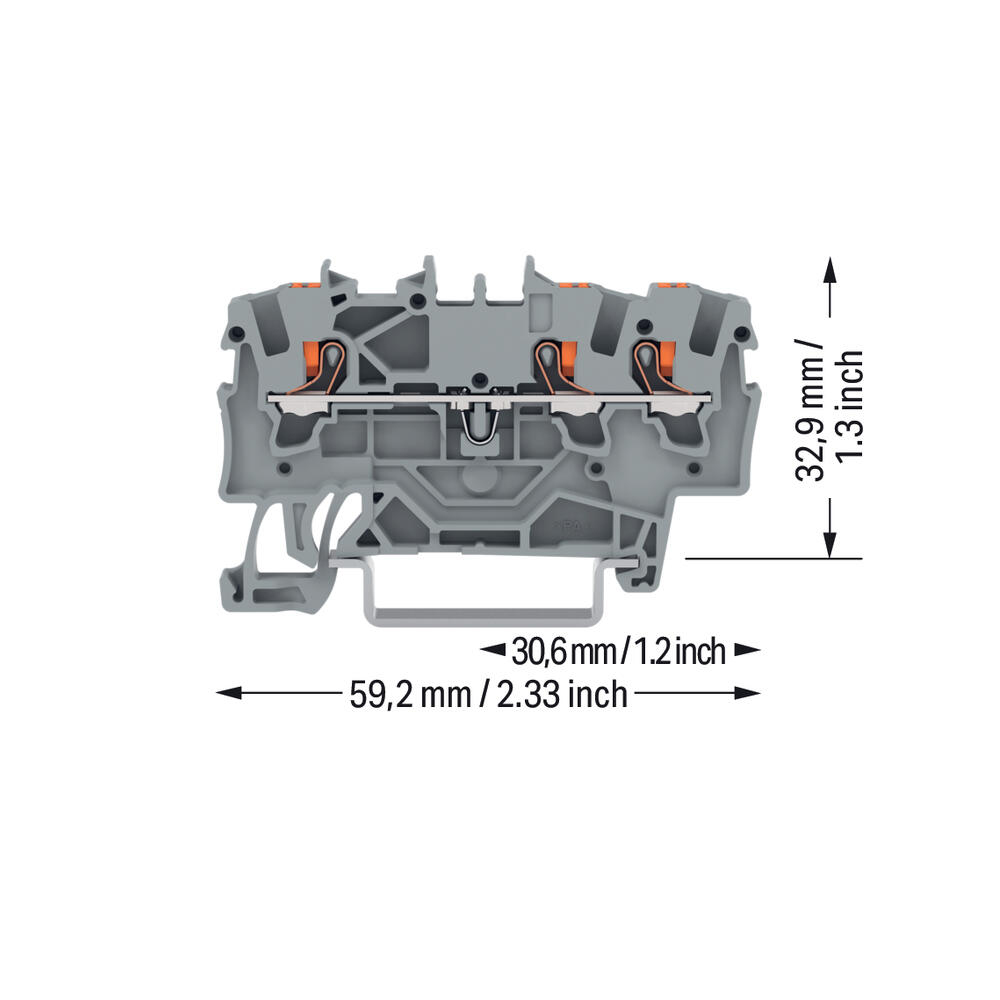

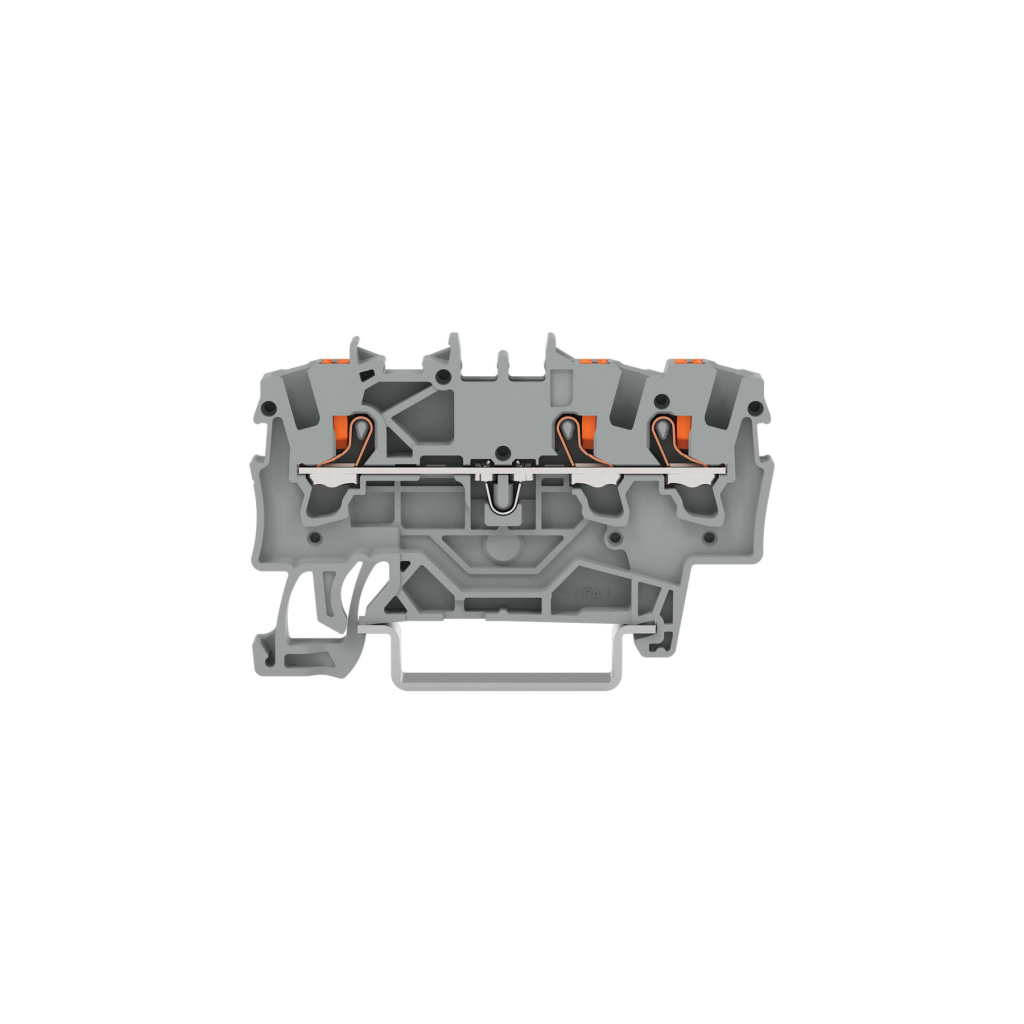

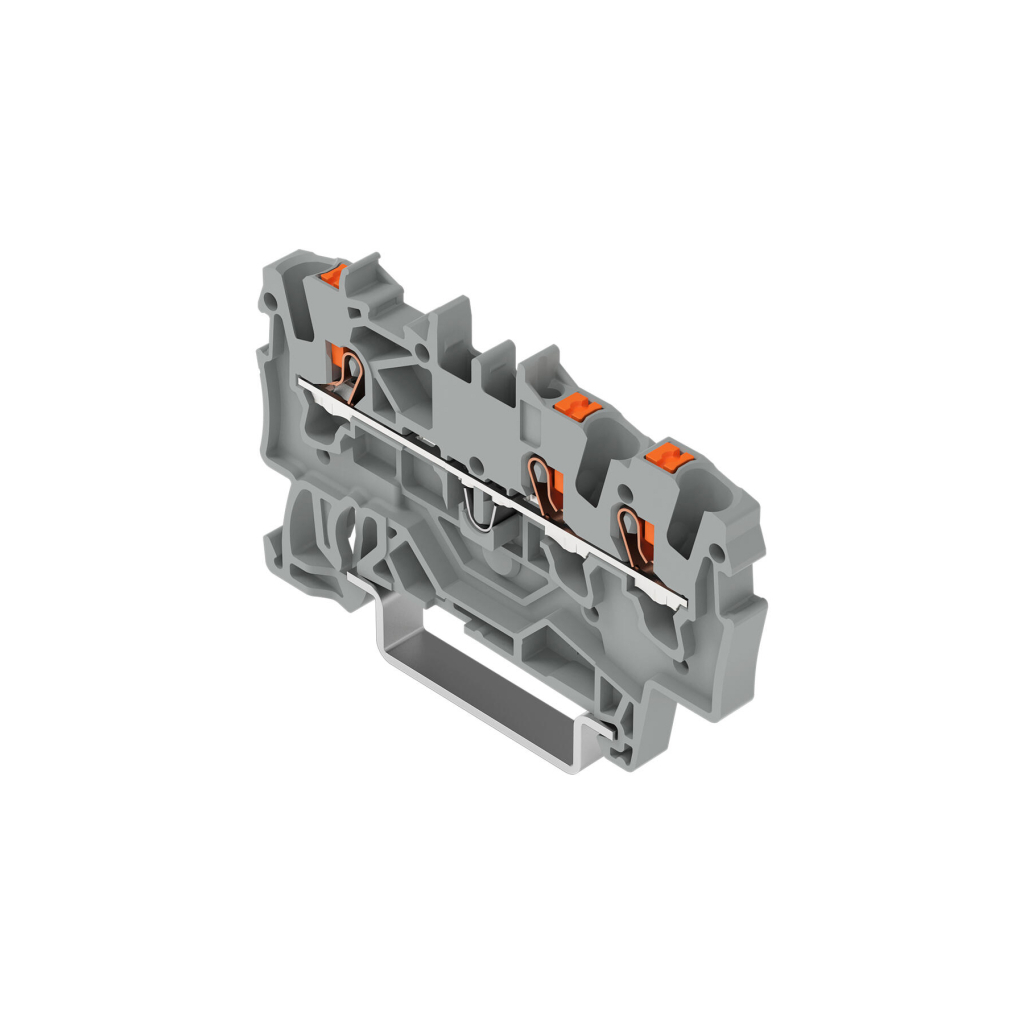

The WAGO 2201-1301 is a grey 3-conductor feed-through terminal block featuring a push-button and Push-in CAGE CLAMP® technology, designed for 35mm DIN rails.
Key Specifications
- Type : 3-conductor through (feed-through) terminal block
- Nominal Cross Section : 1.5 mm² (14 to 22 AWG)
- Electrical Ratings : 800V nominal voltage, 17.5A–18A rated current
- Termination: Push-button with Push-in CAGE CLAMP®
- Mounting : DIN-rail 35 x 15 and 35 x 7.5
- Features : Built-in test port, side and center marking capabilities
Spec Tech :
3-conductor through terminal block; with push-button; 1.5 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; gray
Unduhan populer
- Type : 3-conductor through (feed-through) terminal block
- Nominal Cross Section : 1.5 mm² (14 to 22 AWG)
- Electrical Ratings : 800V nominal voltage, 17.5A–18A rated current
- Termination: Push-button with Push-in CAGE CLAMP®
- Mounting : DIN-rail 35 x 15 and 35 x 7.5
- Features : Built-in test port, side and center marking capabilities
- Color : Gray
