Wago 2201-1201
Terminal Block

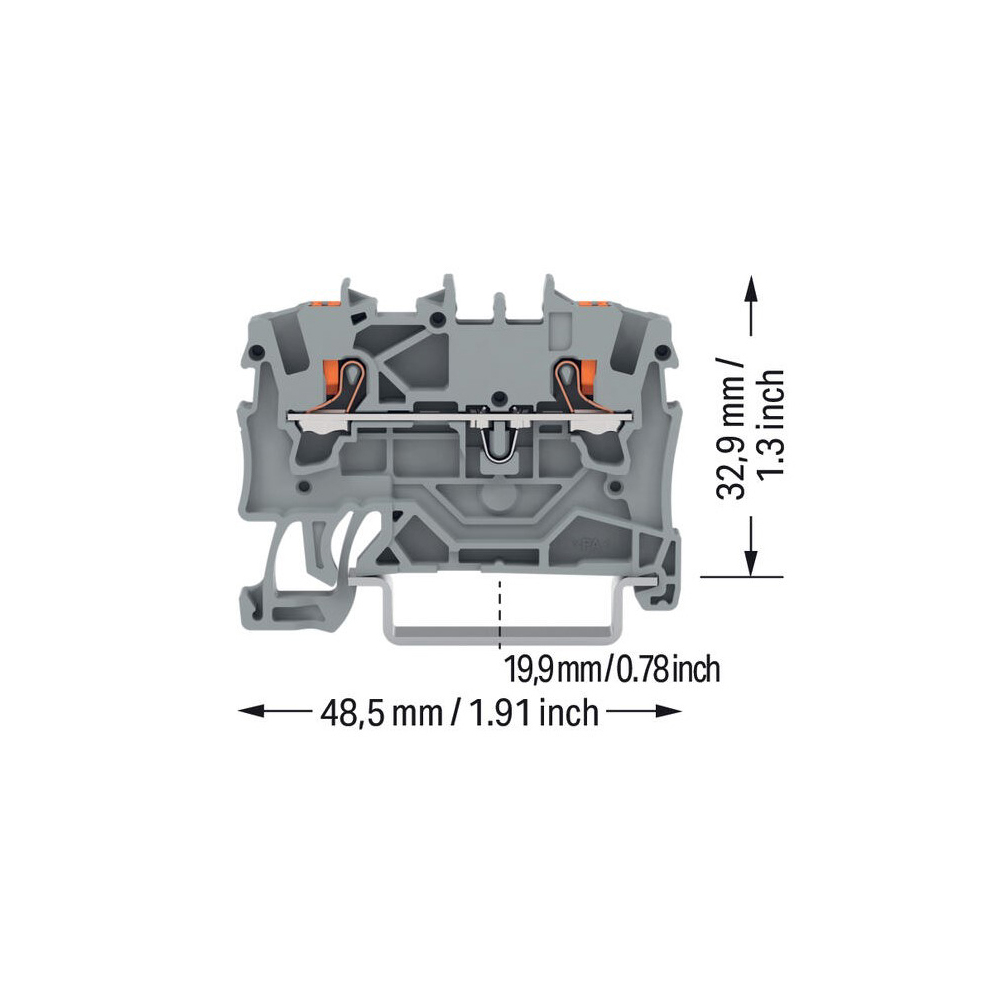

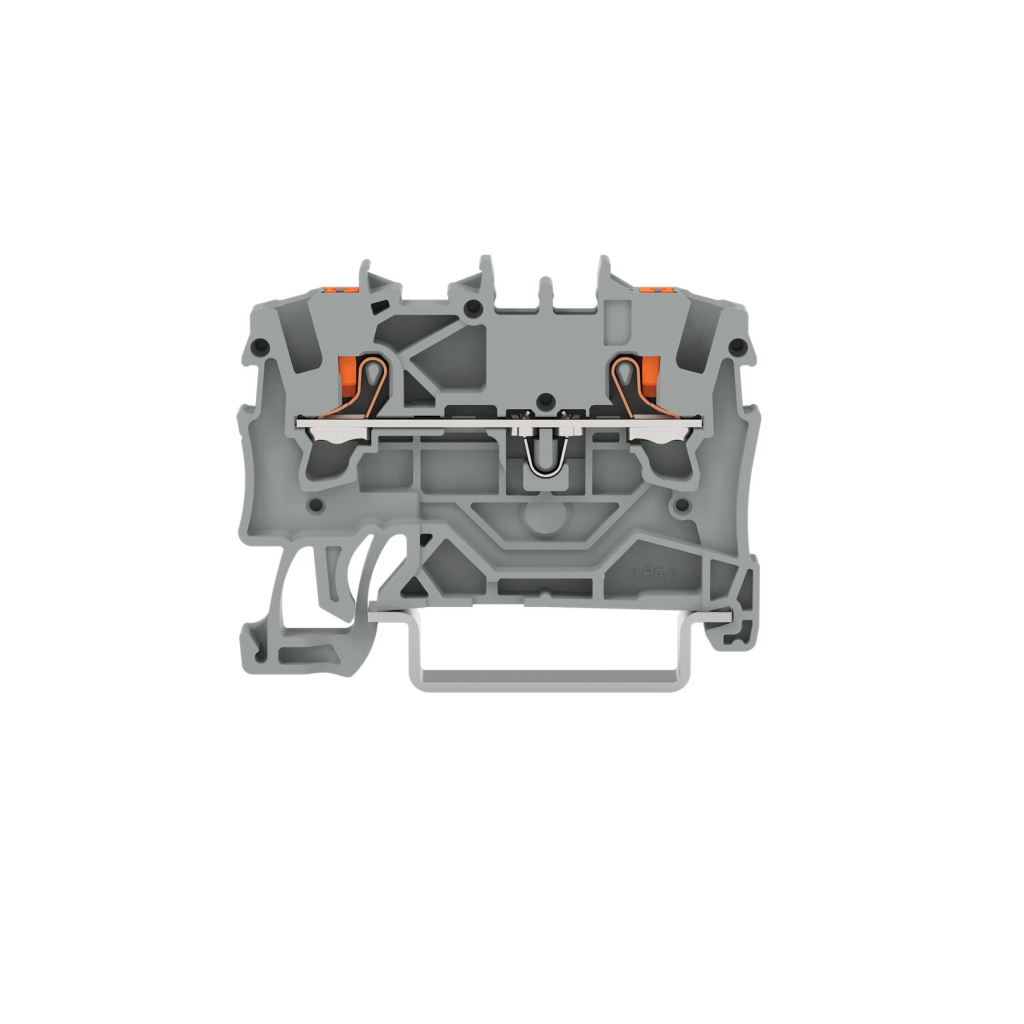

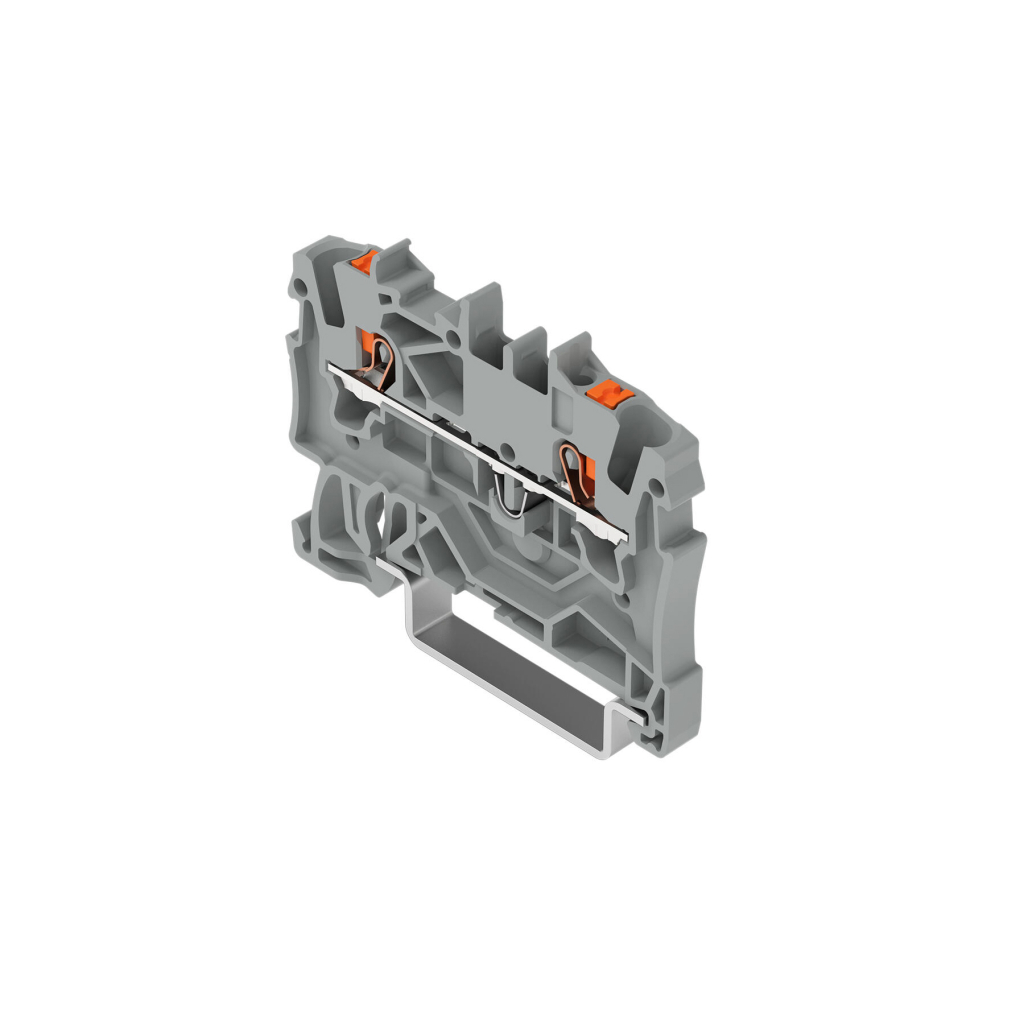

The WAGO 2201-1201 is a compact, gray 2-conductor feed-through terminal block designed for 35mm DIN Rails
Key Specifications
- Type : 2-conductor through (feed-through) terminal block
- Technology : Push-in CAGE CLAMP® with an integrated push-button
- Nominal Cross Section : 1.5 mm² (14–22 AWG)
- Current Rating : 17.5 A to 18 A
- Voltage Rating : 800 V
- Width/Spacing : 4.2 mm
- Color : Gray
- Mounting : DIN-rail 35 x 15 and 35 x 7.5 (Top-hat rail TH35)
- Certifications : Suitable for Ex e II applications (ATEX, IECEx)
